40QT Orbit Winch, 2-Speed

Rating:

1,045.89€

Available in stock

SKU

RA6402

Details

Sprung self-tailing jaws to accept 7 - 12mm line.
QuickTrim™ patented self-tailing feature for rapid sail trim and smooth adjustment.
Ball bearings carry the thrust loads, roller bearings carry the radial loads of the drum to minimise. rotational friction.
Proven Andersen winch gearing configuration.
Power Rib™ ensures a controlled grip on the line at all times, whether trimming or easing. Minimal rope wear compared to more abrasive drum surface finishes.
No tools required for configuration and servicing.
Machined aluminium drum – stronger and lighter. than traditional cast aluminium drums.
Aluminium centre stem, lighter weight compared to bronze stems.
Low line entry due to gearing configuration geometry.

Technical Data

Gear Ratio, 1st Speed	1.4 : 1
Gear Ratio, 2nd Speed	6.8 : 1
Power Ratio, 1st Speed	8.3 : 1
Power Ratio, 2nd Speed	39.5 : 1
Line Size	7 - 12mm

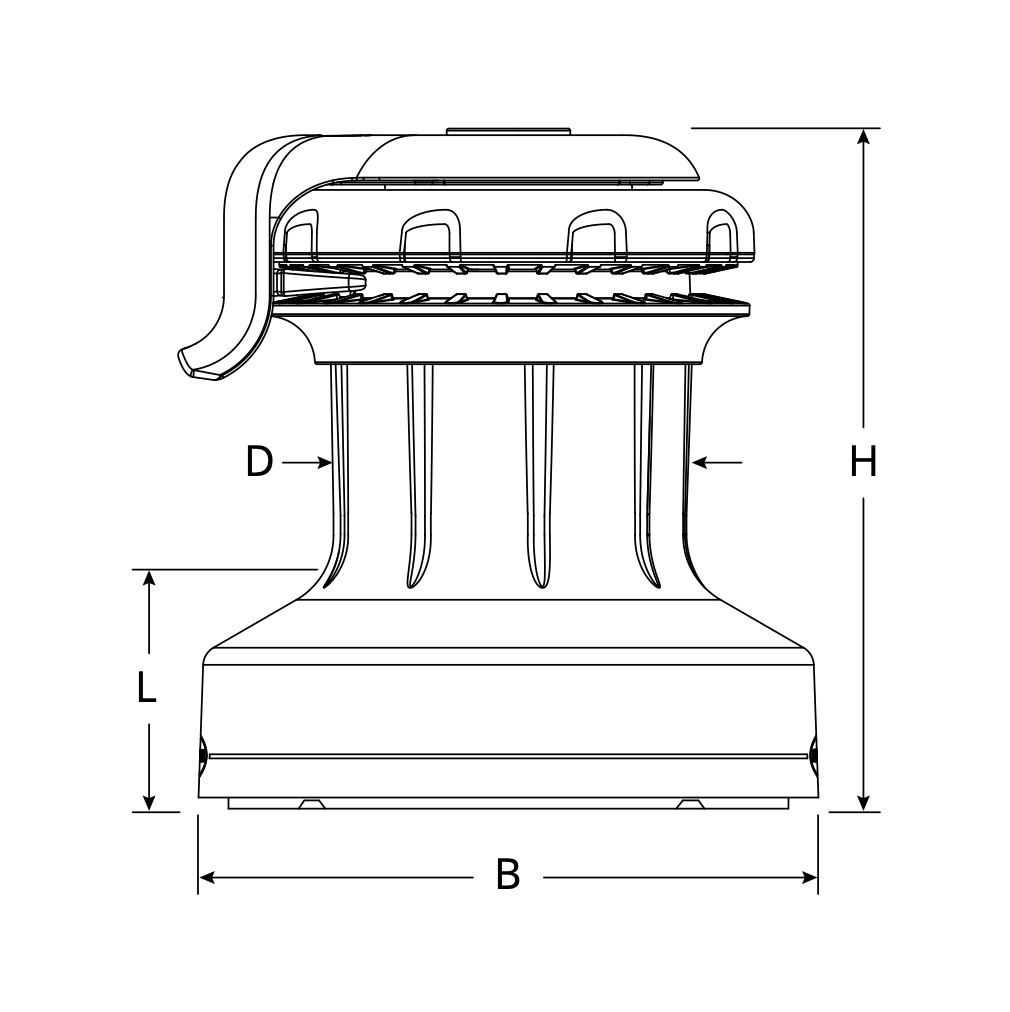

Drum “D”	86mm
Base “B”	151mm
Height “H”	166mm
Line Entry “L”	57mm
Weight	3.1kg
Max Pulling Load	850kg

Features

Hard anodised aluminium drum and centre stem, aluminium self-tailing arm. Grade 316 stainless steel shaft and pawls. Grade 2205 stainless steel axle pins. Aluminium bronze gears. Glass-filled nylon self tailer. Self-lubricating acetal balls and roller bearings.

Tips

QUICK VIDEO — How to use QuickTrim™

QUICK VIDEO — How to enable QuickTrim™

QUICK VIDEO — Orbit Winch™ 40QT disassembly assembly

Download
