Ronstan

Girella per avvolgifiocco serie 60 cod. RS006000

Rating:
0%

Top swivel

129,78 €

Su ordinazione

SKU
RS006010

FEATURES

  • 5mm (3/16")dia. shackle
  • 6mm (1/4") clevis pin in fork



PRODUCT INFORMATION



Refined Design,Performance & Reliability
Ronstan’s Continuous Line Furlers put great performance and reliability within the reach of cruising and racing sailors alike.

Advanced Drum Technology
The range matches drum diameters to load ratings providing the optimum balance between speed and ease of furling. Drums incorporate a machined groove profile and cross-hole geometry to grip the furling line securely. When deploying the sail the continuous furling line self-ejects from the grip zone, remaining stationary for smoother, safer operation with minimum rope wear. A PTFE perimeter strip ensures the unloaded furling line can’t fall from the drum or become snagged.

Top-Down models for soft luff sails
Top-down furling provides a new level of simplicity, safety and speed for handling of soft luff sails such as asymmetric spinnakers and gennakers. Cruisers can now store, deploy and retrieve these sails as simply as they would a furling headsail from the safety and convenience of the cockpit. Racers too can benefit from the characteristics of top-down to allow superfast retrieval of code zeros by prewinding the torsion rope and firing the sheet when ready. Ronstan furlers are available with top-down adapters or in dedicated top-down models with practical accessories such as top swivel lashing pins to provide the perfect solution.

Maintenance free bearing system
Furlers and top swivels feature a factory sealed, maintenance free bearing. Roller bearing sets run on hardened races for smooth high load performance.

Easy continuous line installation and removal
The continuous furling line is easily fitted and removed from the furler, so it can be left on deck when the sail and furler are stowed below.

Secure & flexible attachment options
Furlers and top swivels have retained clevis pins and top swivels have a snag-free low profile shackle pin head. Attachment options include quick release pins, high resistance shackles, snap shackles, fairleads and torsion rope thimbles. The furling line guide can be adjusted to suit either 0˚ or 90˚ attachment, as required to match the take-off alignment and deck layout.

Rotation stop accessory
A compact rotation stop can be added to compatible models of furlers to ensure inadvertent unfurling of the sail doesn’t occur. The rotation stop is simply installed on the underside of the furler and can be locked out when in use, or in when the sail is furled or stowed.



APPLICATIONS

  • Headsail & Gennaker furling on off-the-beach dinghies, multihulls and sportsboats to 7m (23ft)

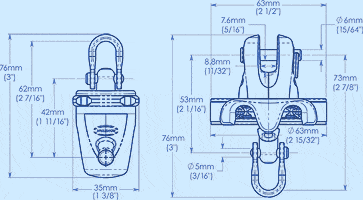

RF006010 - disegno tecnico

Technical Data

Rope Ø mm
M.W.L. 650 kg
B. L. 1300 kg
Weight 85 g
