Titanium Rings
Strength and light weight
Titanium is one of our preferred material
in our manufacturing process.
Su ordinazione
Karver Advantages
- A complete product line is now available. We can also produce custom rings per your specs.

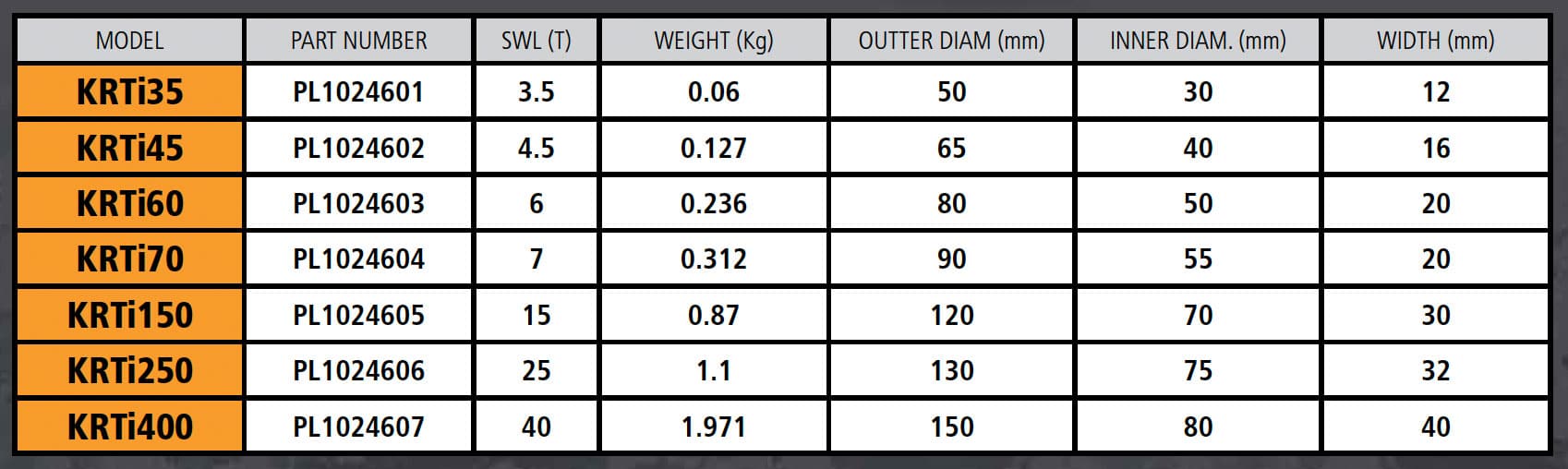

| Technical Data | |
|---|---|
| Weight | 0.06 kg |
| Boat size | 40 to 110″ |
| Workload | 3,50 T |
| Breaking load | 7,00 T |
| External diameter (mm) | 50 |
| External diameter (mm) | 30 |
| Thickness (mm) | 12 |
– Range from 3.5 to 40 T (working load)
– High quality titanium machined in the mass
– Large stock. Availability
– Different shapes and sizes achievable easily and quickly
– Attractive price compared to a pulley with the same load
– Even a titanium ring remains a friction ring and will never perform as well as a block
– It remains an excellent choice for deflecting a rope a few degrees but beyond 45 ° friction at high load becomes very important.
– Do not hesitate to ask us for different rings than those offered in our standard range
